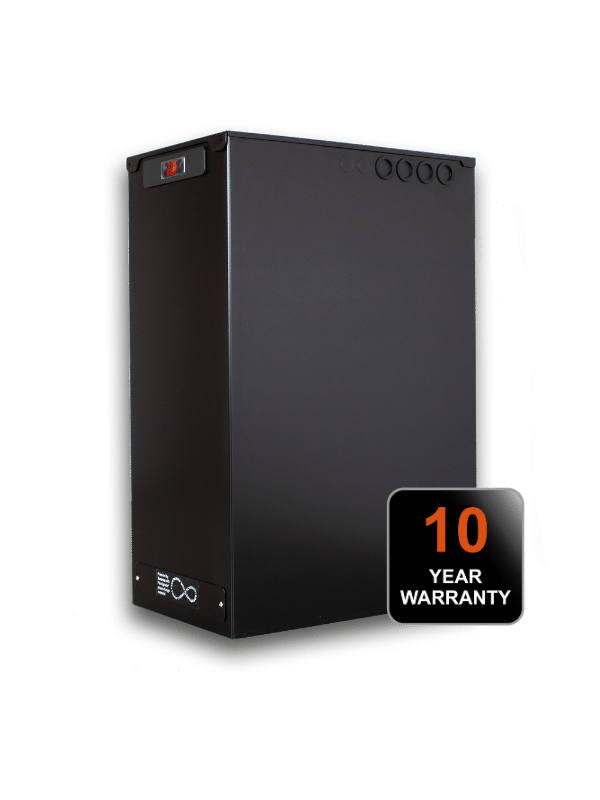

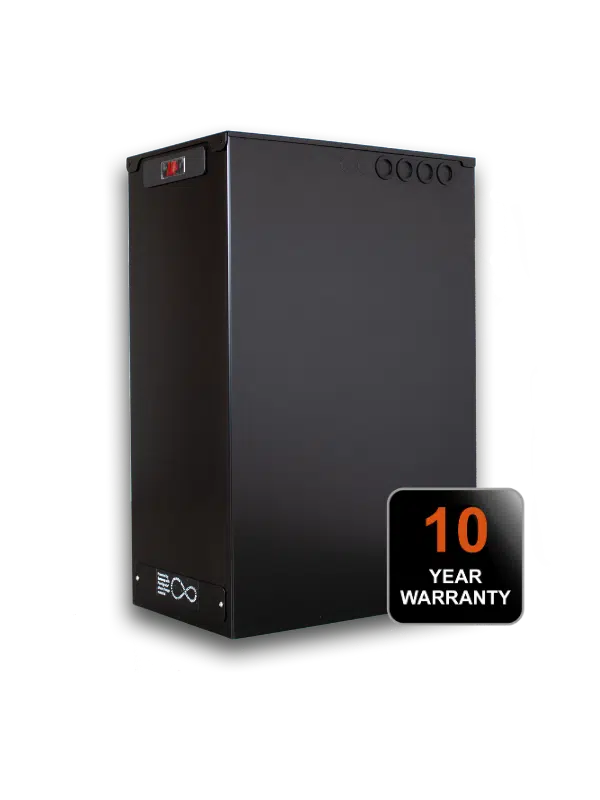

The Triple Solar Thermal Battery is fast, energy-efficient and space-saving. It is combined with the Triple Solar PVT heat pump and replaces the hot water cylinder. Compared to a traditional hot water cylinder, the Thermal Battery is up to four times smaller and therefore fits into any home.
A thermal battery is also known as heat storage or thermal energy storage. Unlike electric batteries, the battery uses PCM technology. This does not store electricity but heat. The stored heat can be used at a later time to make hot water directly. This eliminates the usual hot water storage in the boiler that causes a lot of heat loss.
What distinguishes our battery from other thermal batteries is the lack of a heating element. After all, that is already in the PVT heat pump. As a result, our battery is not only more compact but also cheaper.
The Triple Solar Thermal Battery contains a material called Phase Change Material (PCM). At a certain temperature, the material changes its form (phase), e.g. from solid to liquid. The PCM is heated by the PVT heat pump. The Thermal Battery stores that heat and can immediately release it at any time to make hot tap water. The battery can infinitely charge and discharge without loss of efficiency.
The battery is up to four times smaller than the hot water heater it replaces, so it fits into any home.
The battery is fast and efficient thanks to its high heat absorption and output and has low heat loss.
The battery is easy to install and low-maintenance due to a lack of moving parts.
The battery with energy label A+ is not only compact but also cheaper due to the absence of a heating element.
The Thermal Battery is available in three sizes depending on a household’s hot water requirements: 150 (XXS), 200 (XS) and 300 (S).
Dimensions (hxwxd)
640x365x575 mm
Weight
136 kg
Energy efficiency class
A+
Hot water cylinder size
128 litres
Hot water volume at 40°C
167 litres
Heat loss rate
0.67 kWh/24 (28.1W)
Recommended flow rates
15 LPM
Minimum flow temperature heat source
65°C
Maximum flow temperature heat source
80°C
Maximum mains pressure
10 bar
Hot water temperature
45-55°C
Dimensions (hxwxd)
870x365x575 mm
Weight
187 kg
Energy efficiency class
A+
Hot water cylinder size
192 litres
Hot water volume at 40°C
271 litres
Heat loss rate
0.77 kWh/24 (32.1W)
Recommended flow rates
20 LPM
Minimum flow temperature heat source
65°C
Maximum flow temperature heat source
80°C
Maximum mains pressure
10 bar
Hot water temperature
45-55°C
Dimensions (hxwxd)
1050x365x575 mm
Weight
233 kg
Energy efficiency class
A+
Hot water cylinder size
256 litres
Hot water volume at 40°C
333 litres
Heat loss rate
0.84 kWh/24 (35W)
Recommended flow rates
25 LPM
Minimum flow temperature heat source
65°C
Maximum flow temperature heat source
80°C
Maximum mains pressure
10 bar
Hot water temperature
45-55°C
